We chose logo fakro as our Canadian supplier of Attic Ladders because of their superior design and build quality. They satisfy all technical and safety requirements while maximizing ease of use and comfort. You are thus guaranteed safe, comfortable and solid access to the attic.

FAKRO's folding attic ladders have a quick fixing system which enables the ladder to be easily installed by one or two people. Adjusting the height of the ladder and steps (ladder toe space) is very easy to do. Not much room is needed when opening or closing the attic ladder. Once closed the attic ladder will fold and fit into the ceiling and therefore maximizing available free space!

The main types of attic ladders available are:

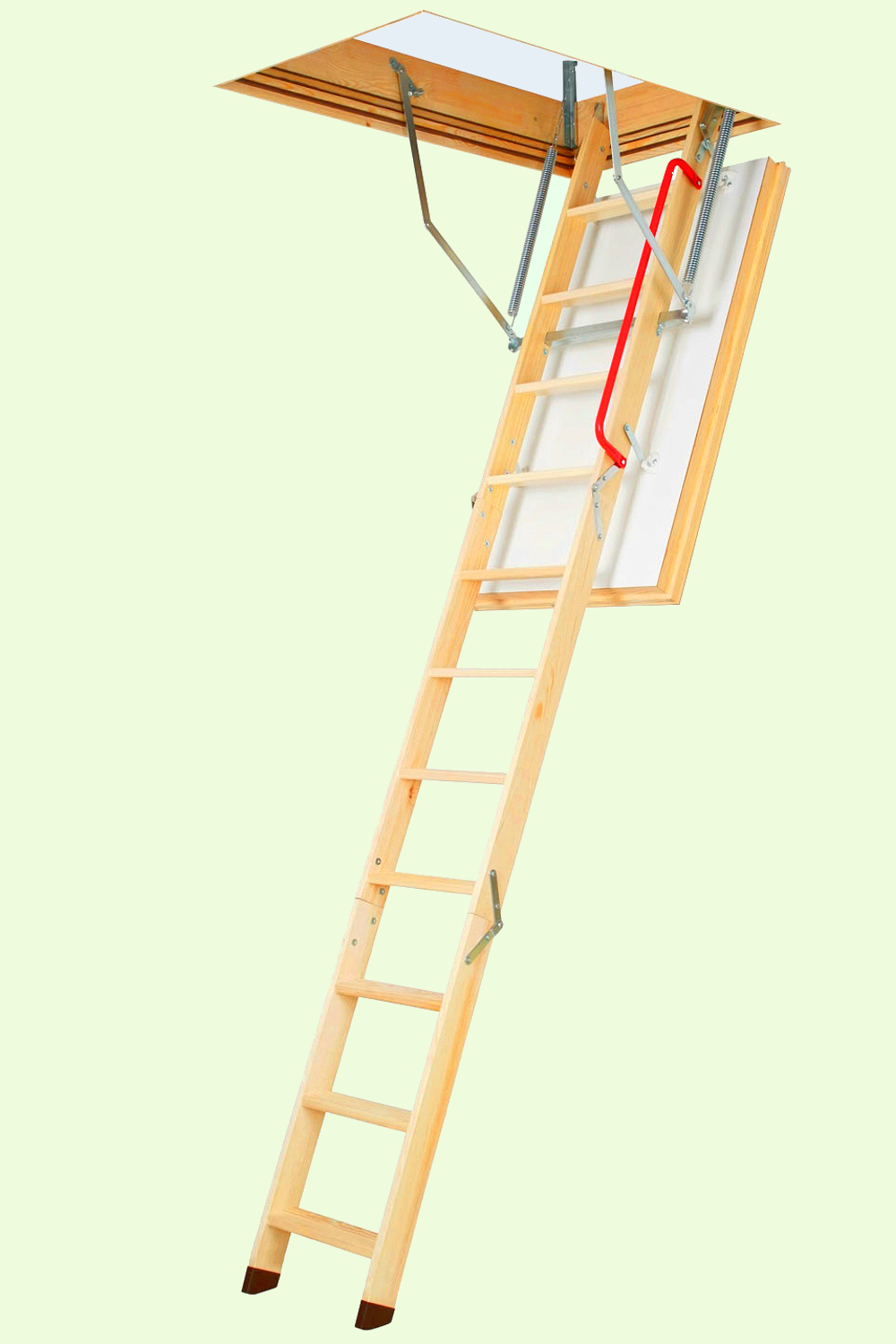

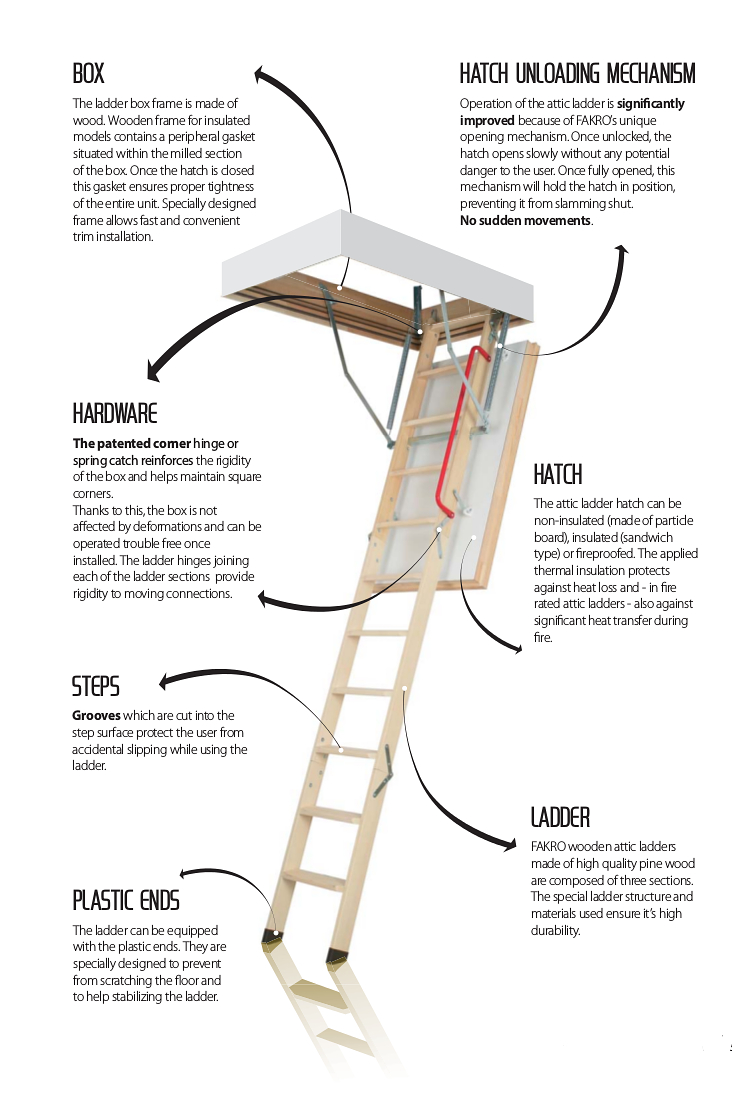

Wood Folding Ladder Types:



Basic Wooden model - LWN (for barns, non-insulated garages, projects with limited insulation requirements, e.t.c...  Not recommended for the indoors of homes).

Inuslated and sealed wooden models - LWP for garages, inside houses, projects with insulation requirements, e.t.c...)

Insulated and sealed thermo wooden model – LWT (for areas with saving energy requirements and customers who like quality and saving)

Insulated and sealed fire rated wooden model – LWF (for building codes requiring fire protection, etc.)

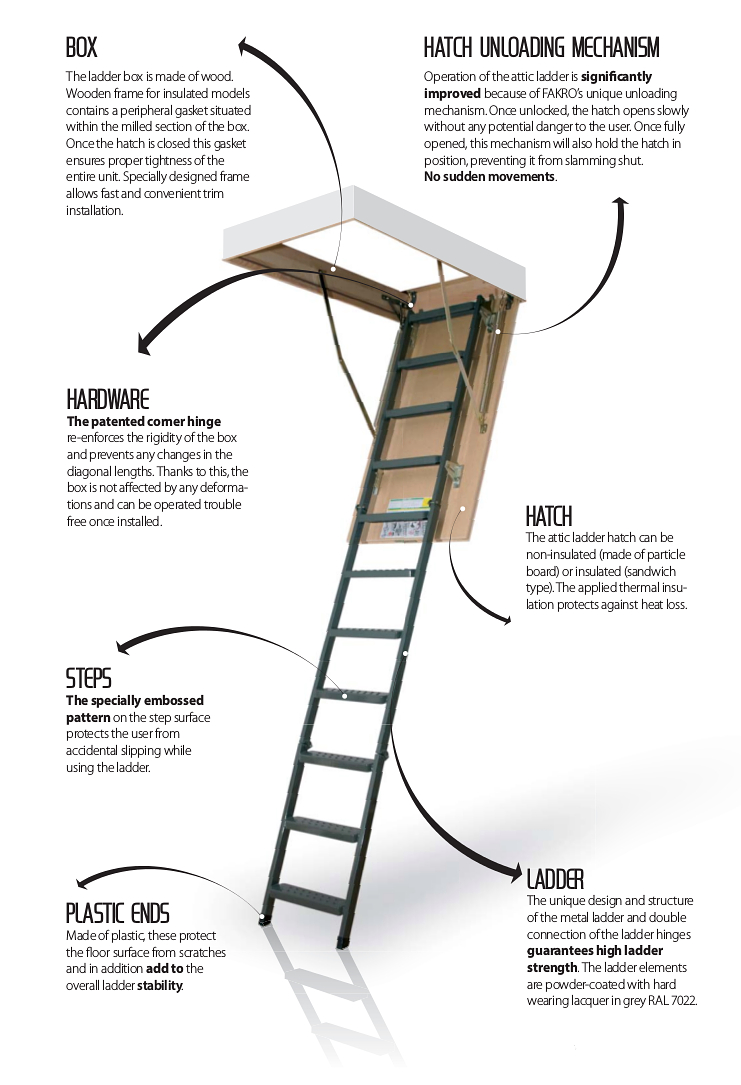

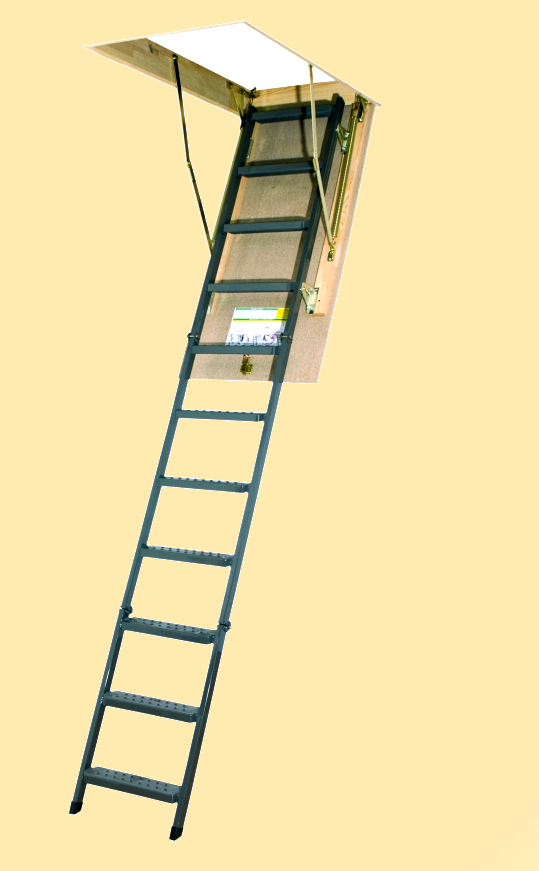

Folding Metal Ladder Types:

Basic metal model – OWM (for barns, non-insulated garages, projects with limited insulation requirements, not recommended for inside houses, etc.)

Insulated and sealed metal model – LMS (for garages, inside houses, projects with insulation requirements, etc.)

Insulated metal model – LML (for garages, inside houses, projects with insulation requirements and wide steps, etc.)

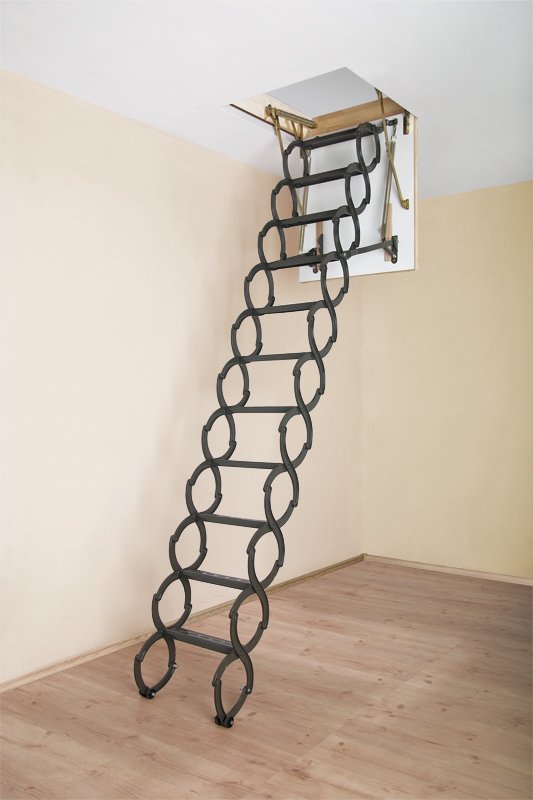

Scissor Metal Ladder Types:

Insulated and sealed scissor metal model – LST (for garages, inside houses, projects with insulation requirements, etc.)

Insulated fire rated scissor metal model – LSF (for building codes requiring fire protection, etc.)

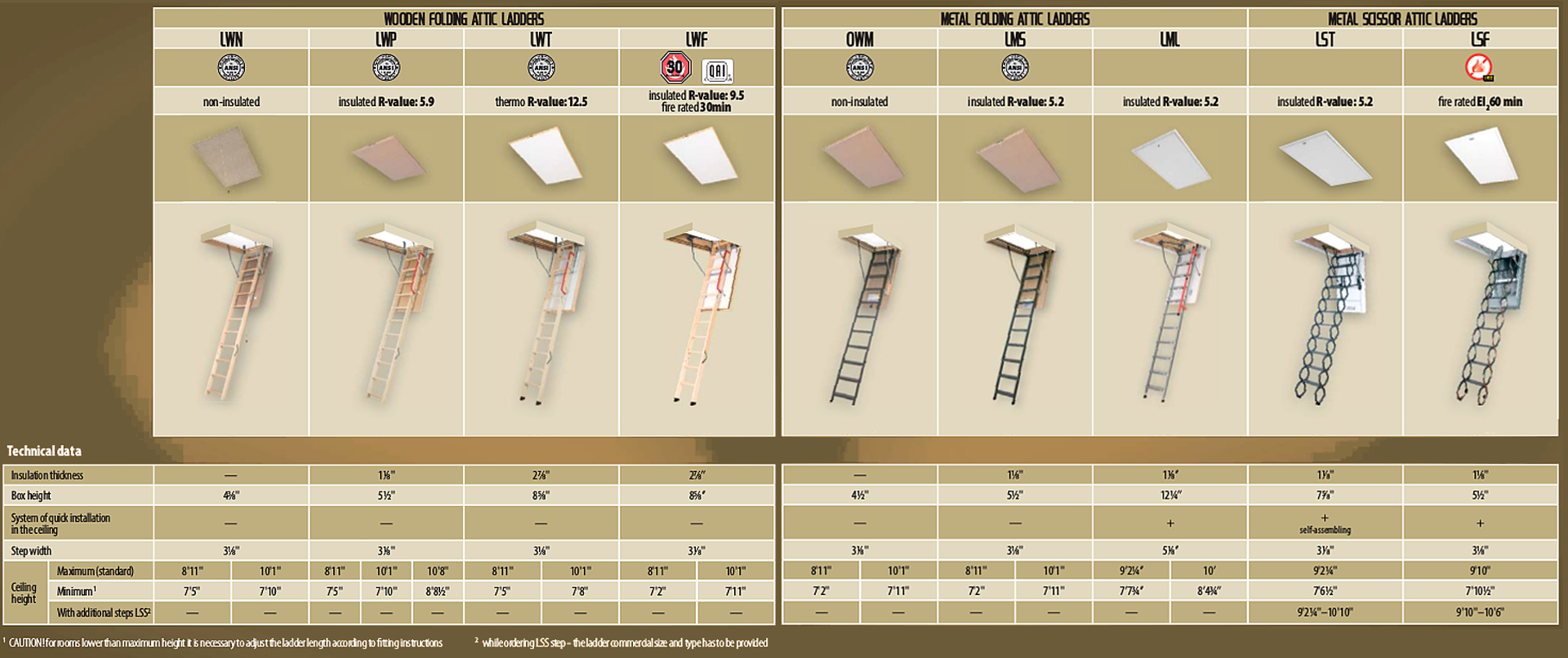

Fakro Folding Wooden and Metal Attic (& Metal Scissor) Ladders Technical Data Scaled
Fakro Folding Wooden and Metal Attic Ladders (& Metal Scissor Ladders ) Technical Data

All ladders are solidly built and come with a long-term warranty program.* Minimum ceiling heights are recommended by the manufacturer for each model and must be followed.  Please ask us about details for specific models.

All wooden ladders and wood components in FAKRO ladders come from well-managed forests and other controlled sources. Abiding by the rules of environmental protection and local communities. Advanced technological solutions are used to save energy and offer the client sustainable and user-friendly materials.


*If the client does not follow the manufacturer's recommendations- he/she must agree to indemnify the manufacturer. Thus hold Fakro and Al-Arch Lanterneaux harmless from any liabilities that may arise from adjustments/alterations made beyond the recommended minimum ceiling height.

The FAKRO ladders: OLN, OLN-P, LWS-P, LWF, OWM and LWM comply with ANSI A14.9 2004 standard.

ansi logo for Fakro attic ladders

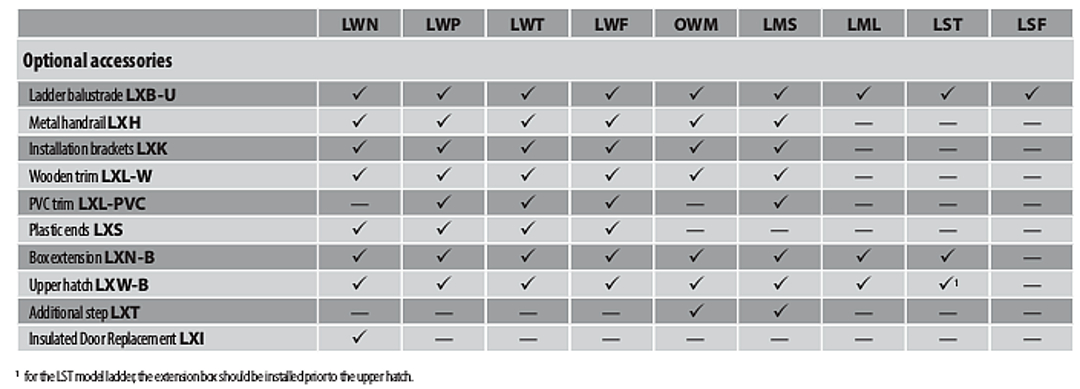

Optional Accessories

Fakro Optional Accessories for Attic Ladders
Fakro Optional Accessories for Attic Ladders

Plastic ends LXS

 One can add finishing elements which mount at the base of the ladder, adding elegance while being practical: The optional dark brown base ends (LXS) are made from plastic materials to protect the floor from being scratched. Through appropriate shape, they add to the ladder’s stability. They are very easy to install (no angle cutting necessary). They can be mounted on ladders already in use. Each set contains 2 pieces. Available for all sizes LWN, LWP, LWF, LWT.

platic ends for the ladder base
Plastic ends LXS for Fakro Attic Ladders

Metal Handrail (LHX)

The Optional red-painted Metal Handrail (LHX) is mounted on the angle brackets of the ladder.  It and can be mounted on either side of the ladder, making climbing easier.  The handrail is available in 2 lenghts.

25 1⁄2 inches for  OWM

29 1⁄2 inches for LWN, LWP, LWF, LWT, LMS.

Note: Pls. provide ladder type and size when ordering the handrail.

Fakro Metal Handrail LXH
Fakro Metal Handrail LXH

Upper Hatch (LXW-B)

The Optional Upper Hatch (LXW-B) prevents attic dust from accumulating on the hatch and steps of the closed ladder. It improves the overall insulating parameters and tightness of the ladder on which it is installed. The height of the upper hatch box is 7 3⁄4 inches. Available for ladders LWN, LWP, LWF, LWT, OWM, LMS, LML. For the LST model ladder, the extension box LXN should be installed prior to the upper hatch.

Note: Pls. provide ladder type and size when ordering the Upper hatch.

Fakro optional Upper Hatch LXW-B
Fakro optional Upper Hatch LXW-B
