Commercial Acrylic Dome Skylights;  (NFFDD) , (DDA), (CADD) and (CLDD).



Skylights are factory assembled and designed in Canada by Architecural Plastics Ltd. who have been in operation for nearly 40 years and they expertly maintain a high standard of quality and durability.



Commercial skylights have 6063-T5 aluminum alloy extruded frames that are mill finished as standard. An optional Duracon® (Thermosetting acrylic) 100 architectural metal finish is available in a wide range of colours.

To be shipped to the building site in pre-assembled form where possible. Curb frames may be mounted to wood or concrete curbs constructed by the installers, or with integral metal curbs supplied by our manufacturer.



The skylights on this page can be ordered and will be delivered in 10-14 working days.  For long linear applications, pls. consult our Continuous Vault Skylights page.

Aluminum frame skylights (NFFDD)

Specifications

Aluminum frame skylights (NFFDD), are acrylic double dome pre-assembled skylights, with clear outer dome (or translucent white or tinted) and a clear inner dome. A 6063-T5 aluminum alloy extruded mill finished curb and retaining frame complete the unit.

To be installed on a 1 1/2 inch (38 mm) curb by means of wood screws through holes in inner frame.

aluminum framed skylights NFFDD

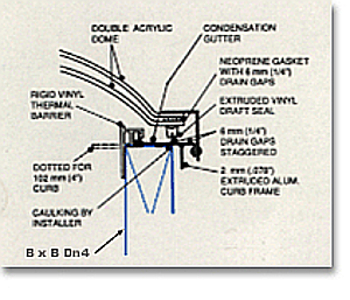

NFFDD Aluminum framed acrylic dome Skylights Diagram
NFFDDCC demo of corner of frame
aluminum frame acrylic dome skylight NFFDD - demo of corner of frame
NFFCMDDCC white duracon (custom) aluminum framed acrylic dome skylight installation
NFFDD white duracon*(custom) aluminum framed acrylic dome skylight installation
List of available sizes for Aluminum framed acrylic dome skylights NFFCMDDCC

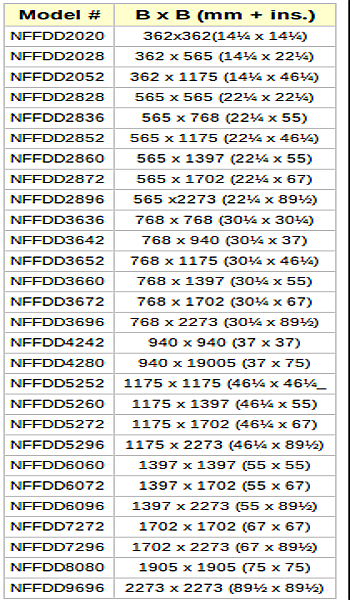

List of available sizes for Aluminum framed acrylic dome skylights NFFDD

Insulated curb (DDA)

Specifications

Insulated curb (DDA), acrylic double dome pre-assembled skylights, complete with clear outer dome (or tinted) and a clear or white translucent inner dome. The 6063-T5 extruded aluminum curb is 229mm (9") high and 50mm (2") wide and filled with rigid insulation.

To be installed on a 1 1/2 inch (38 mm) curb by means of wood screws through holes in inner frame.

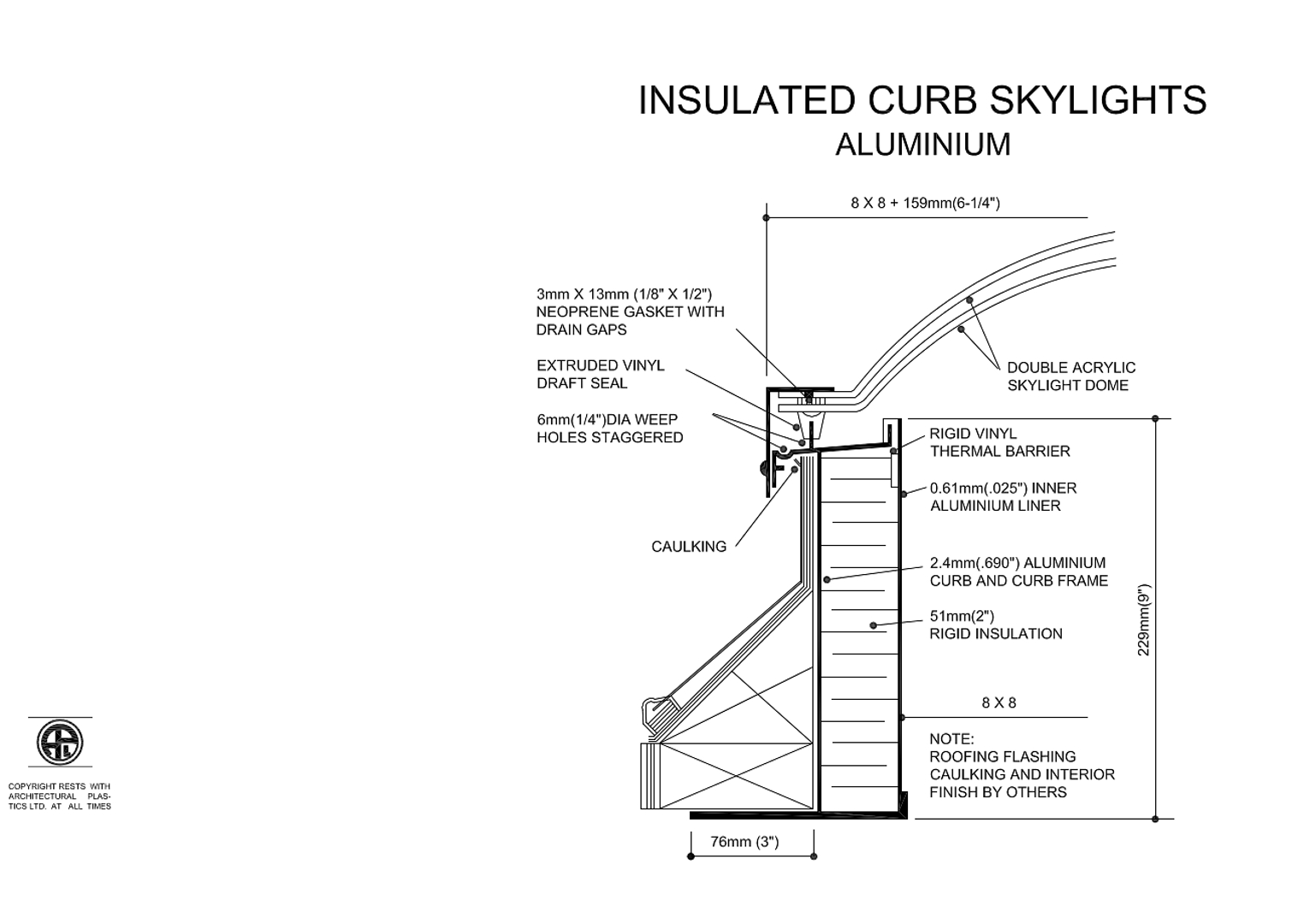

Insulated Curb Skylights Aluminum Diagram
Insulated Curb Skylights Aluminum Diagram
Insulated Curb Skylight
Insulated Curb Skylight

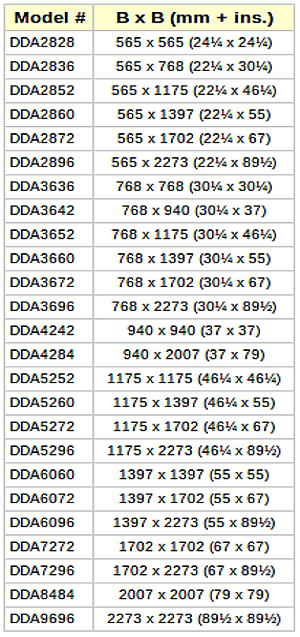

Insulated Curbs - List of Available Sizes
List of available sizes for Insulated Curb Skylights

Circular Dome (CADD)

Specifications

Circular Dome (CADD) pre-assembled skylights have acrylic double domes; a clear outer dome or tinted, and a clear or white translucent inner dome. The frame is a mill finished 6063-T5 extruded aluminum curb of 229mm (9") high and 50mm (2") wide and filled with fibreglass insulation.

To be installed on a 1 1/2 inch (38 mm) curb by means of wood screws through holes in inner frame.

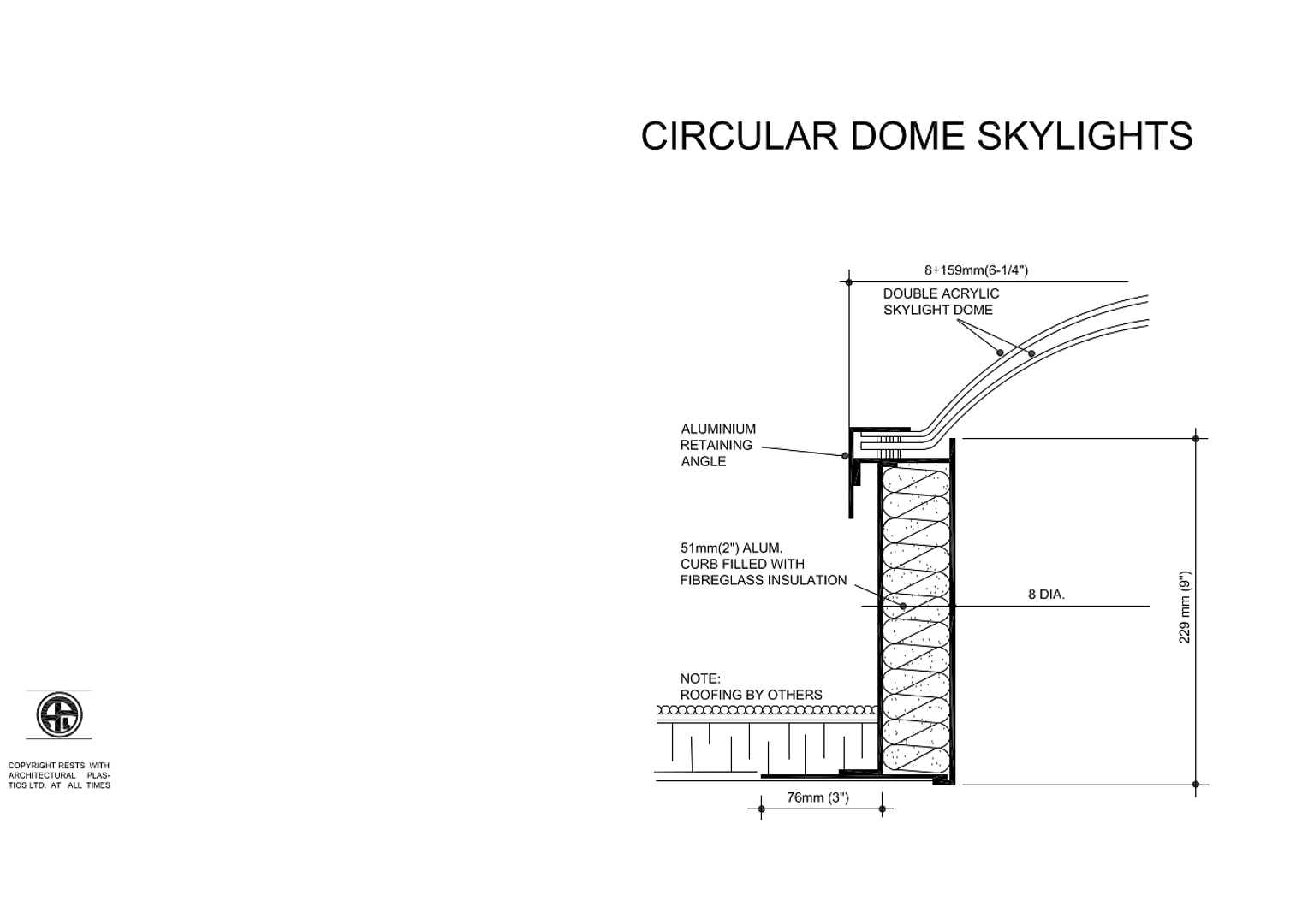

Circular Dome Skylights Diagram
Circular Dome Skylights Diagram
Circular Dome Skylight
Circular Dome Skylight

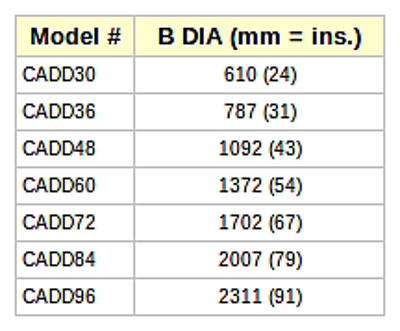

Circular Dome Skylights Sizes List
List of available sizes for Circular Dome Skylights

Integral Cluster Skylights (CLDD)

Specifications

Integral Cluster Skylights (CLDD) are basically a composite of individual single dome, double dome or Continuous Skylights. Choose clear or white (translucent) single acrylic dome, or clear outer dome with clear or white (translucent) inner domes. Domes will fit on a 41mm (1 5/8") by 102mm (4") wide curb. Complete with a 6064-T5 mill finished extruded aluminum alloy No-Frost perimeter curb frame and intermediate retaining frame assemblies.

Integral Cluster Skylights Diagram
Integral Cluster Skylights Diagram
Integral Cluster Skylights
Integral Cluster Skylights

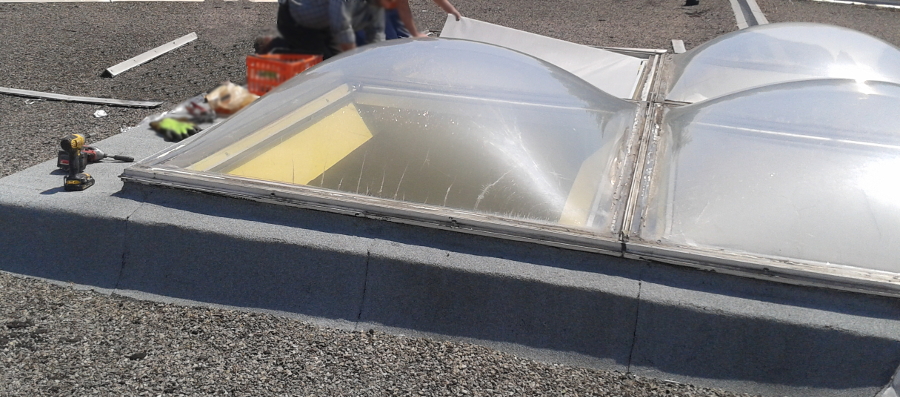

Integral Cluster Skylights Installation
Integral Cluster Skylights Installation

Characteristics



-Commercial acrylic dome skylights are built to withstand all kinds of atmospheric conditions.

-Acrylic domes are durable, shatterproof, will not get deformed over time, nor get damaged by the hottest summer sun.

-They also allow increased light transmission due to their clarity.

-As long as the skylights are installed in the proper manner, the positive curb frame seal guarantees protection from the elements.

-Commercial acrylic dome skylights have a thermal barrier and are designed to be frost-free

-Grooves and channels in the frame evacuate any condensation from extreme humidity.



Commercial Acrylic dome skylights have a 5 year warranty starting from their date of installation- to be free from material and manufacturing defect.

Note: This warranty only covers the repair or the replacement of the unit.

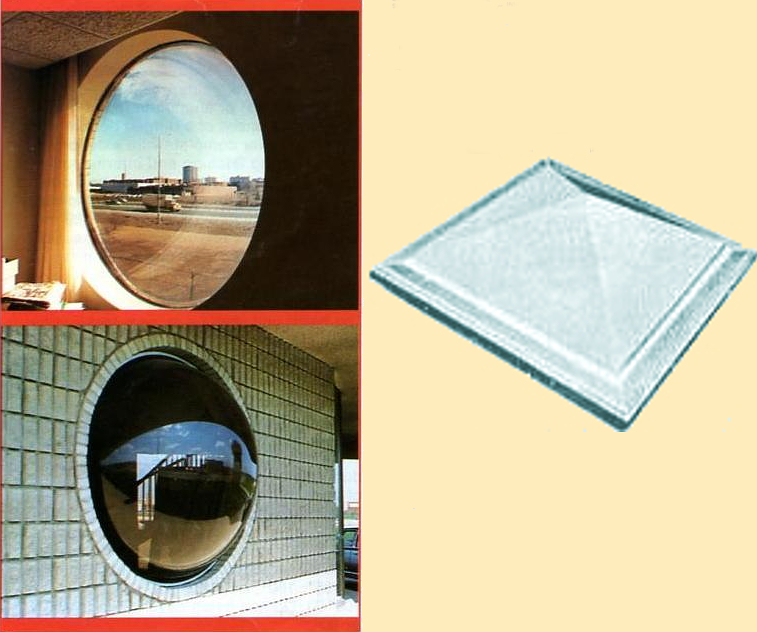

Pyramid Skylights & Circular Wall-Mount Domes
