Pyramid  Skylights;  double glazed (PDCMCC) or single (PSCMC)




Skylights are factory assembled and designed in Canada by Allied Plastics Inc.

The following standard sizes listed can be ordered and will be delivered in 10-14 working days.



Pyramid skylights are specially designed over a square frame with a curb mount and are double (PDCMCC) or single (PSCMC) glazed.

Choose between clear (transparent), tinted or a transluscent white glaze.



For all other sizes, or for a rectangular frame, pls. consult our Custom Sizes and Designed Acrylic Dome Skylights page.

pyramid skylight

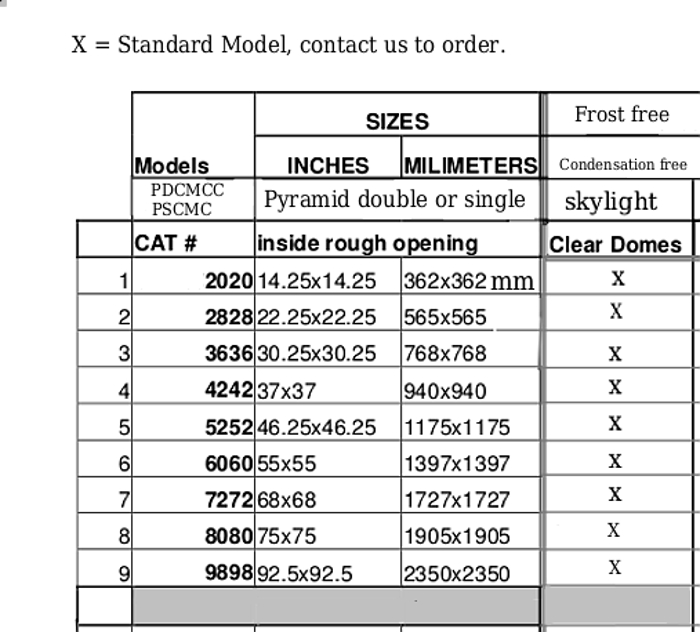

Pyramids acrylic skylights list of standard models

Specifications

The curb mount skylight consists of a pyramid shaped outer shell formed with a single piece of cast acrylic that can withstand a minimum live load of 40 lbs per square foot (195kg per meter2), and an acrylic inner section that is dome shaped.  A frost-free (and condensation)and scratch-free extruded white vinyl frame and aluminum outer retaining frame (painted brown) complete the unit.

To be installed on a 1 1/2 inch (38 mm) curb by means of wood screws through holes in inner frame.  The recommended size when choosing your skylight is aproximately 5% of the floor space in the room that will have the skylight overhead.

Circular Wall-Mount Domes; single (CWMSD) or double dome (CWMDD)



Factory assembled and designed in Canada by Allied Plastics Inc.

Circular wall-mount domes must be ordered and take at least 10-14 working days to be delivered.



Choose between single (CWMSD) or double dome (CWMDD) , clear (transparent), tinted or transluscent white.

The 'standard' sizes are  (DD30) diameter 31.5''  (DD36) diameter 37.5'' (DD48) diameter: 51'', (DD60) diameter: 63'' or (DD72) diameter: 72.5''.



If other sizes are needed please contact us.  All frames for circular wall-mount domes are hand made.



For insulated circular dome skylights, pls. consult our Commercial Acrylic Dome Skylights page.

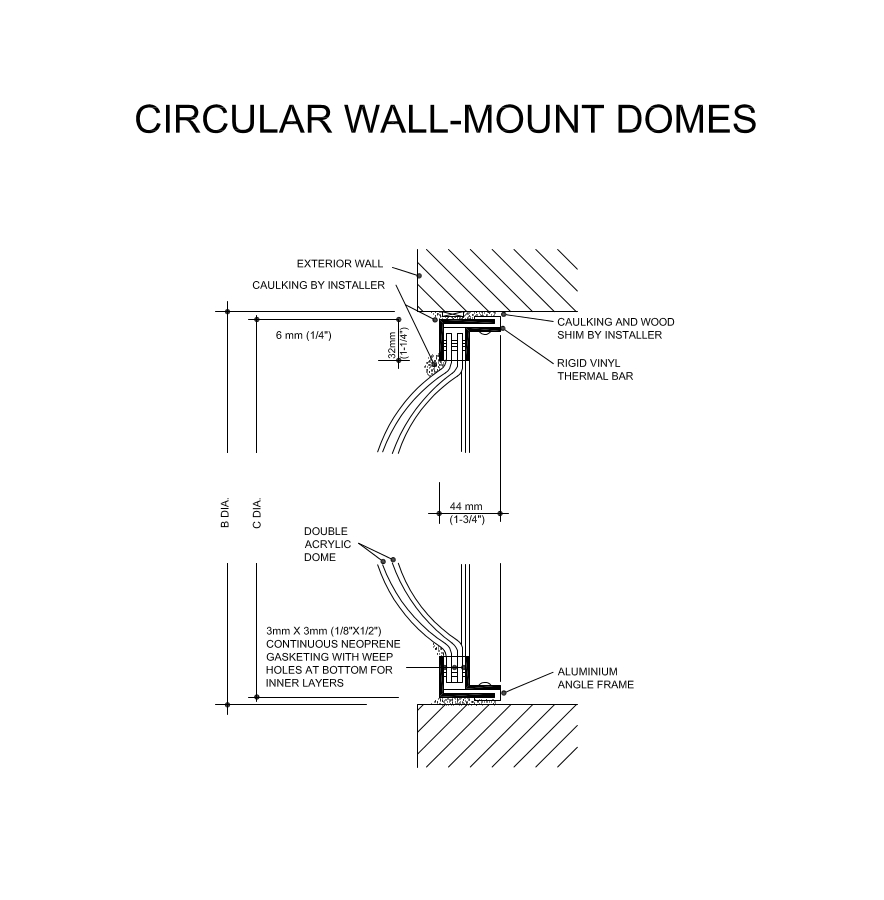

Circular Wall-Mount Domes diagram

Specifications

The circular dome consists of an outer dome with a single piece of cast acrylic that can withstand a minimum live load of 40 lbs per square foot (195kg per meter2), and inner acrylic dome (in the case of a double dome model).  It has a frost-free 6063-T5 mill finished aluminum frame and rigid vinyl thermal barrier. Also with a condensation weepage port for masonry or frame wall construction with optional mounting brackets.

Characteristics of Pyramid Skylights & Circular Wall-Mount Domes

-Pyramid skylights are designed to adjust within the rafters of the roofs of average homes.

-All pyramid skylights & circular wall-mount domes are built to withstand all kinds of atmospheric conditions.

-Their acrylic domes are durable, shatterproof, will not get deformed over time, nor get damaged by the  hottest summer sun.

-They also allow increased light transmission due to their clarity.

-As long as the skylights are installed in the proper manner, the positive curb frame seal guarantees protection from the elements.

-Circular wall-mount domes have a thermal barrier and are designed to be frost-free

-Grooves and channels in the frame evacuate any condensation from extreme humidity.



Pyramid Skylights & Circular Wall-Mount Domes have a 5 year warranty starting from their date of installation- to be free from material and manufacturing defect.

Note: This warranty only covers the repair or the replacement of the unit.
