Fakro Glass Skylights;  (FX), (FV) and (FVE)



Deck mounted Fixed Glass Skylights (FX), Manual Venting Glass Skylights (FV) and Electric Venting Glass Skylights (FVE).



  We offer Fakro Glass Skylights for their excellent features:

Long Lasting Performance: High quality raw materials, a modern production process, quality control at every stage of assembly, attention to detail, with a guarantee of safety, durability and quality.  (Warranty and Certifications are listed towards bottom of this page).

For Fakro Egress Windows, pls. consult our Fakro Egress Windows page.

Fakro deck mounted Fixed Glass Skylights (FX)



Specifications

- Glazing is tempered/laminated
-Air infiltration 0.04 l/s/m2 (0.008 cfm/ft2)*
-Water resistance 720 Pa (15psf)*
Structural Performance: **
-Downward load 188 psf
-Wind Uplift 188 psf




* Model FX tested in accordance with AC17
Model 48/46 tested at a 15 dgree roof pitch
**tested in accordance with AC17
"Acceptance criteria for glass glazed unit skylights and sloped glass glazing"

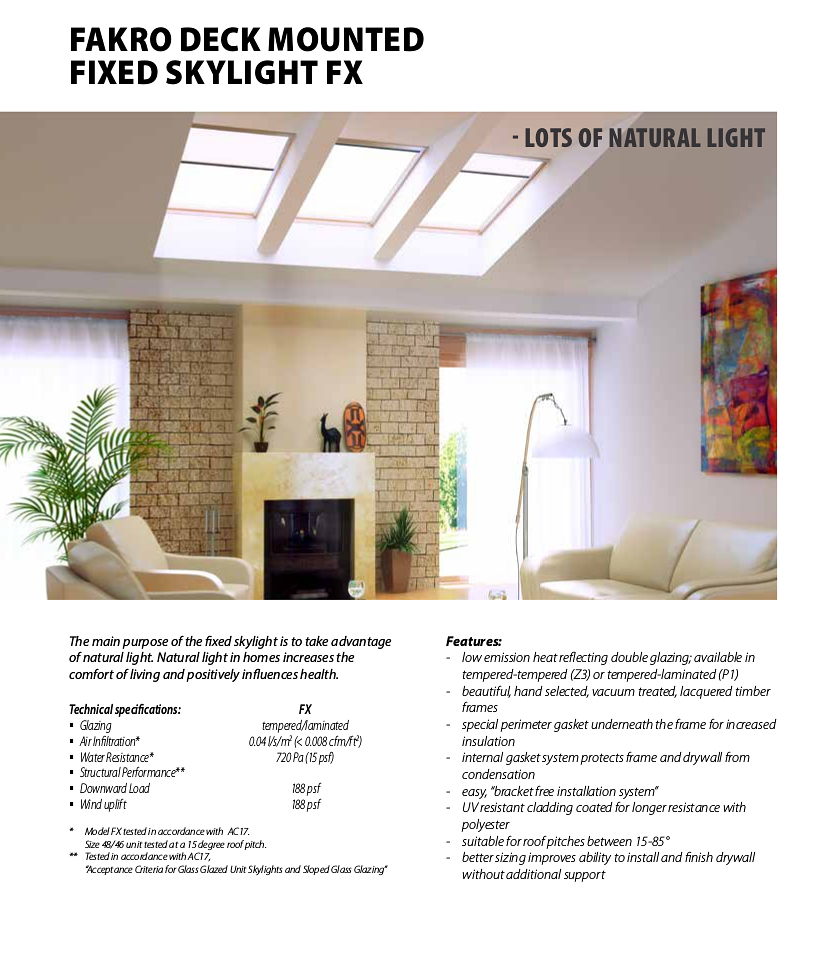

Fakro deck mounted Fixed Skylight FX details
Fakro deck mounted Fixed Skylight FX details
Glass Skylights
Fakro deck mount fixed glass skylight FX

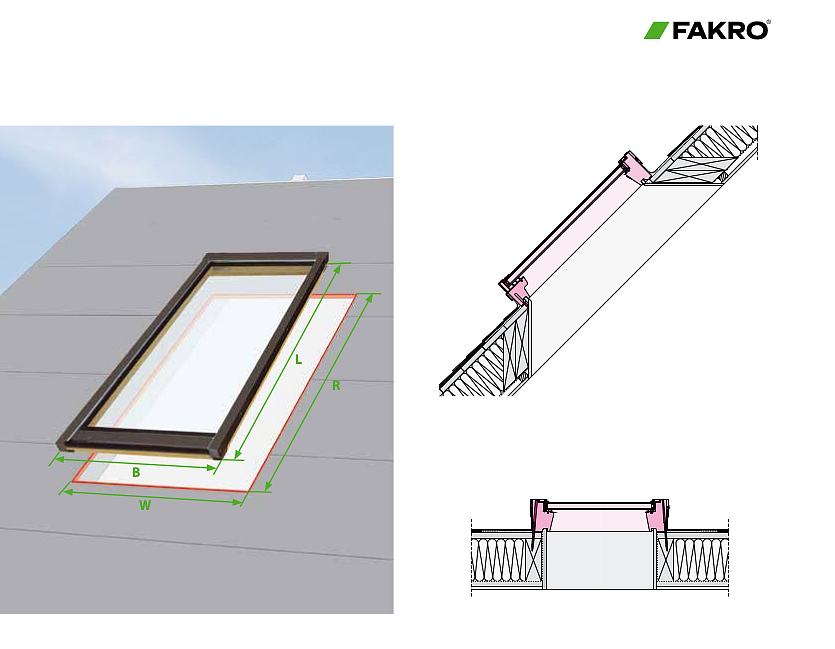

Fakro deck mounted Fixed Skylight FX Dimensions
Fakro deck mounted Fixed Skylight FX Dimensions
Fakro deck mounted Fixed Skylight FX - List of sizes
Fakro deck mounted Fixed Skylight FX - List of sizes

Fakro deck mounted Manual Venting Skylights (FV)



Specifications

- Glazing is tempered/laminated
-Air infiltration 0.04 l/s/m2 (0.008 cfm/ft2)*
-Water resistance 580 Pa (15psf)*
Structural Performance: **
-Downward load 156.6 psf
-Wind Uplift 156.6 psf



* Model FX tested in accordance with AC17
Model 48/46 tested at a 15 dgree roof pitch
**tested in accordance with AC17
"Acceptance criteria for glass glazed unit skylights and sloped glass glazing"

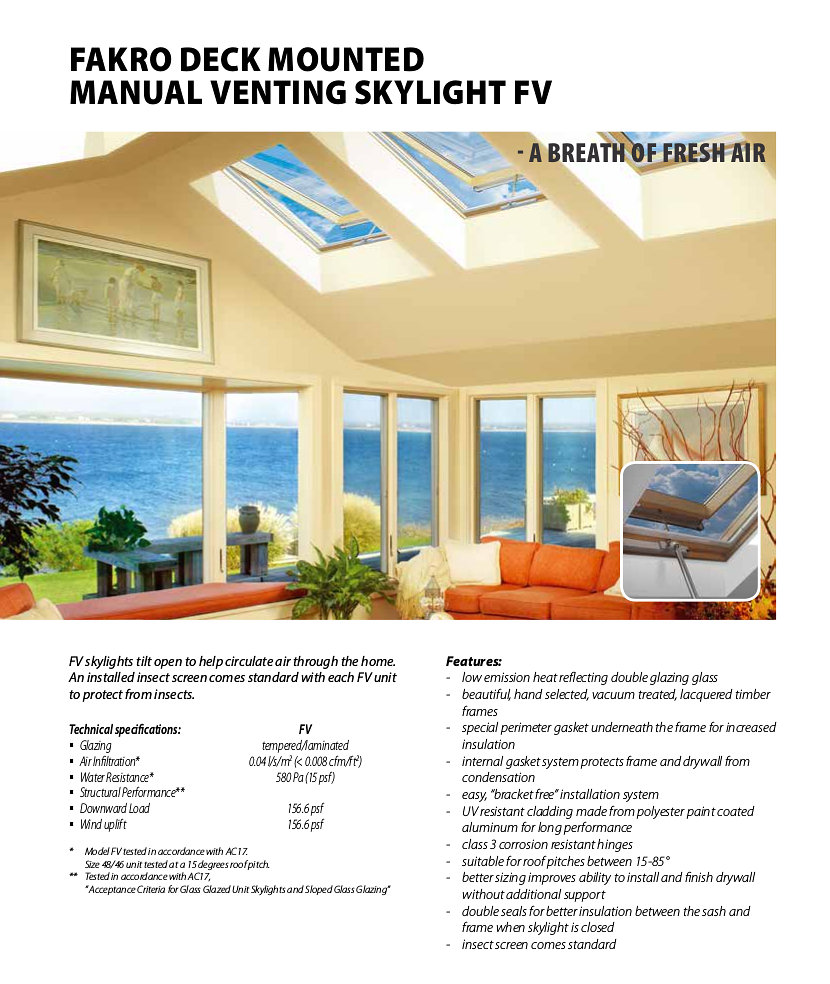

Fakro deck mounted Manual Venting Skylights FV
Fakro deck mounted Manual Venting Skylights FV
Manual Venting Glass Skylights FV
Fakro Manual Venting Skylights FV

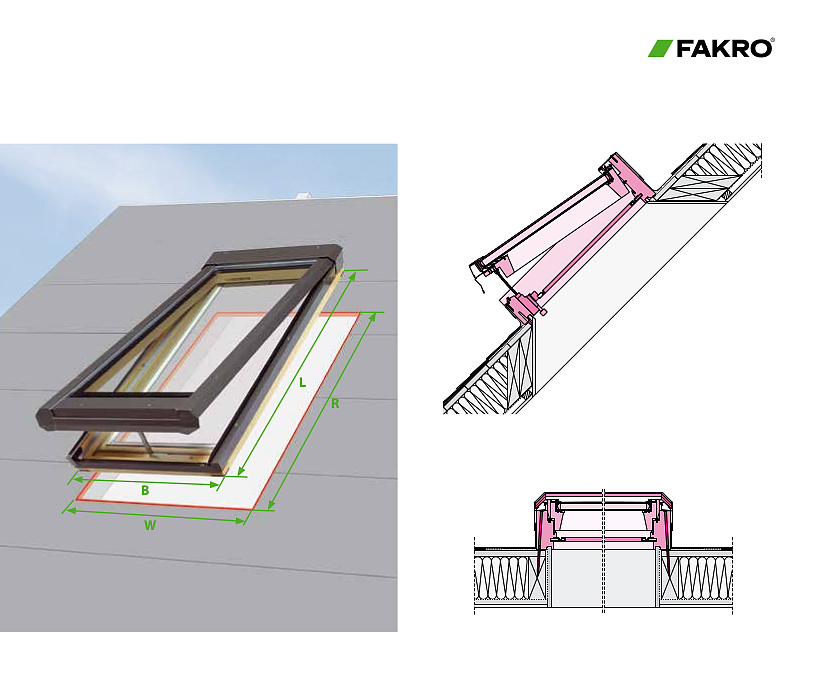

Fakro deck mounted Manual Venting Skylight FV dimensions
Fakro deck mounted Manual Venting Skylight FV dimensions
Fakro Manual Venting Glass Skylight FV List of sizes (close up)
Fakro Manual Venting Glass Skylight FV List of sizes

Fakro deck mounted Electric Venting Skylights (FVE)



Specifications

- Glazing is tempered/laminated
-Air infiltration:  0.04 l/s/m2 (0.008 cfm/ft2)*
-Water resistance:   580 Pa (12psf)*
Structural Performance: **
-Downward load:  40 psf
-Wind Uplift:   40 psf



* Model FX tested in accordance with AC17
Model 48/46 tested at a 15 degree roof pitch
**tested in accordance with AC17
"Acceptance criteria for glass glazed unit skylights and sloped glass glazing"

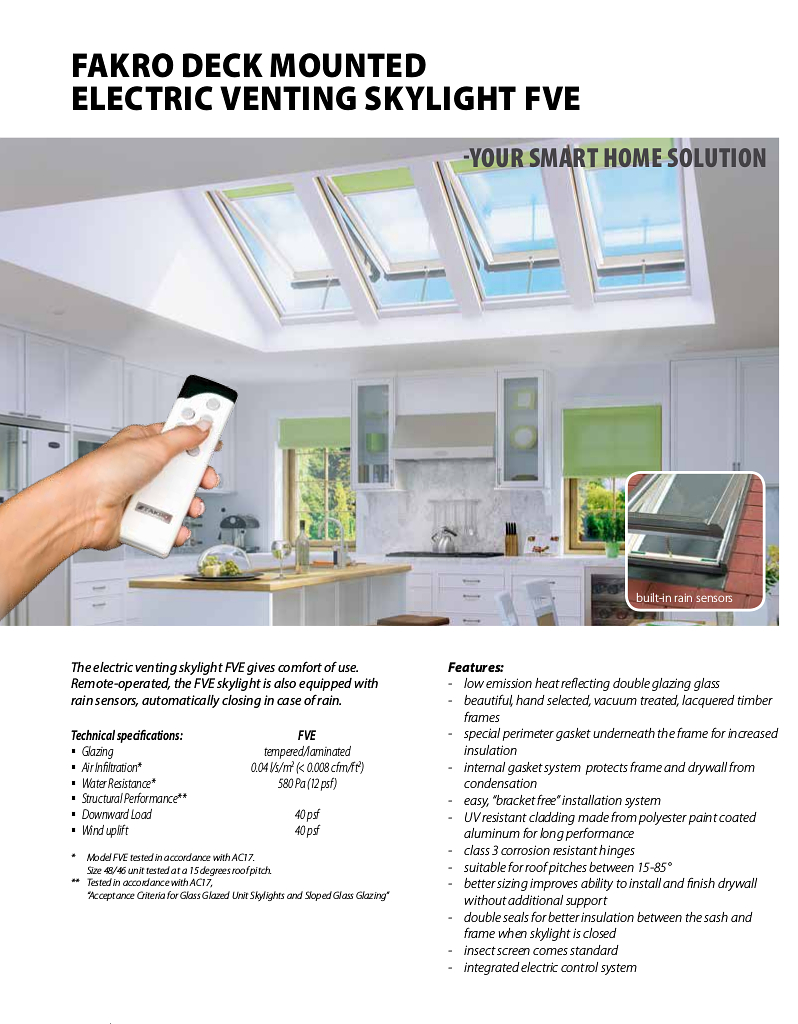

Fakro deck mounted Electric Venting Skylight FVE details
Fakro deck mounted Electric Venting Skylight FVE details
Electric Venting Glass Skylights
Electric Venting Glass Skylights FVE

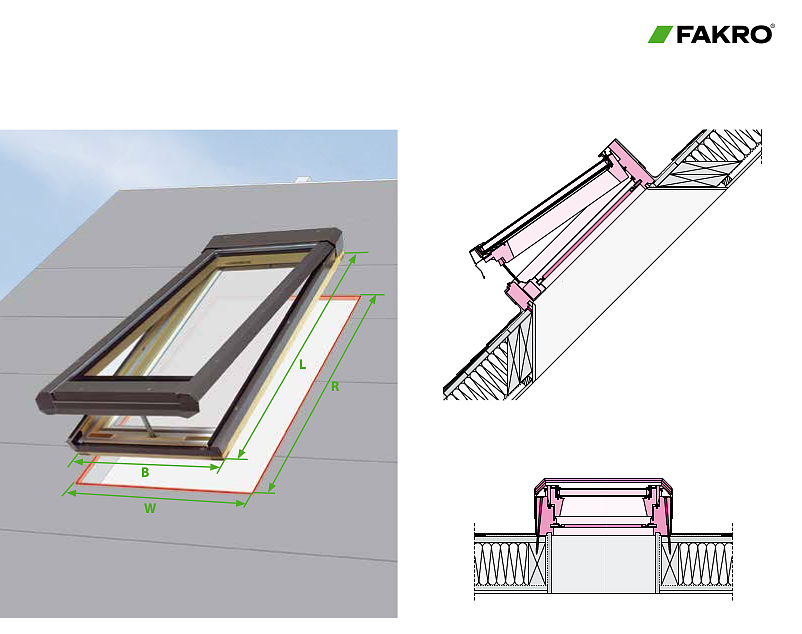

Fakro deck mounted Electric Venting Skylight FVE Dimensions
Fakro deck mounted Electric Venting Skylight FVE Dimensions

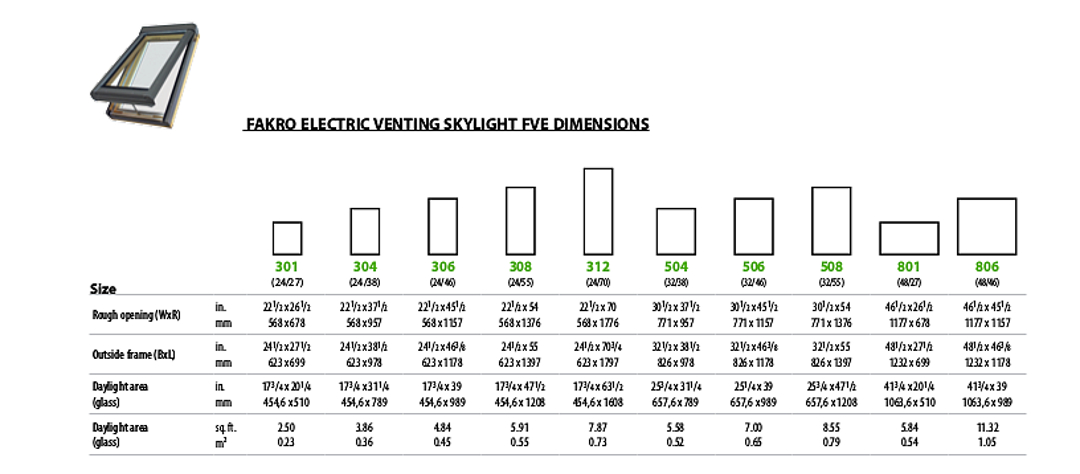

Fakro deck mounted Electric Venting Skylight FVE Sizes List
Fakro deck mounted Electric Venting Skylight FVE - Sizes List

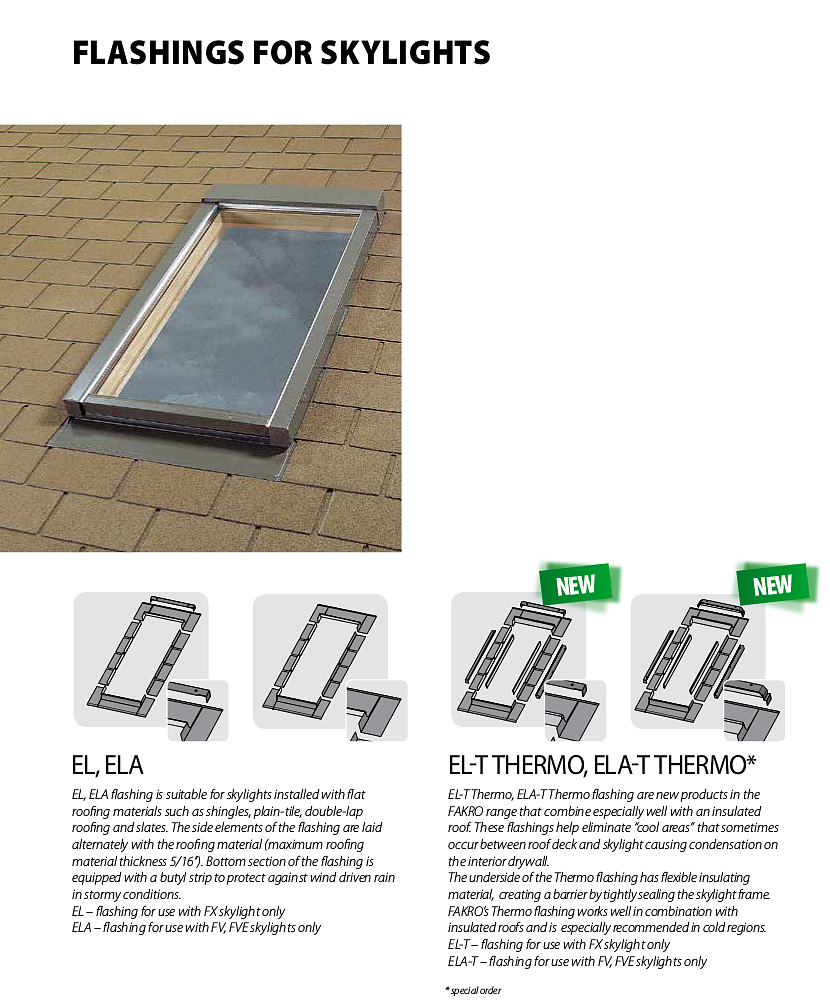

Flashing for Fakro Skylights- using flat roofing materials



Flashings for Fakro glass skylights
Flashings for Fakro glass skylights - for flat roofing materials

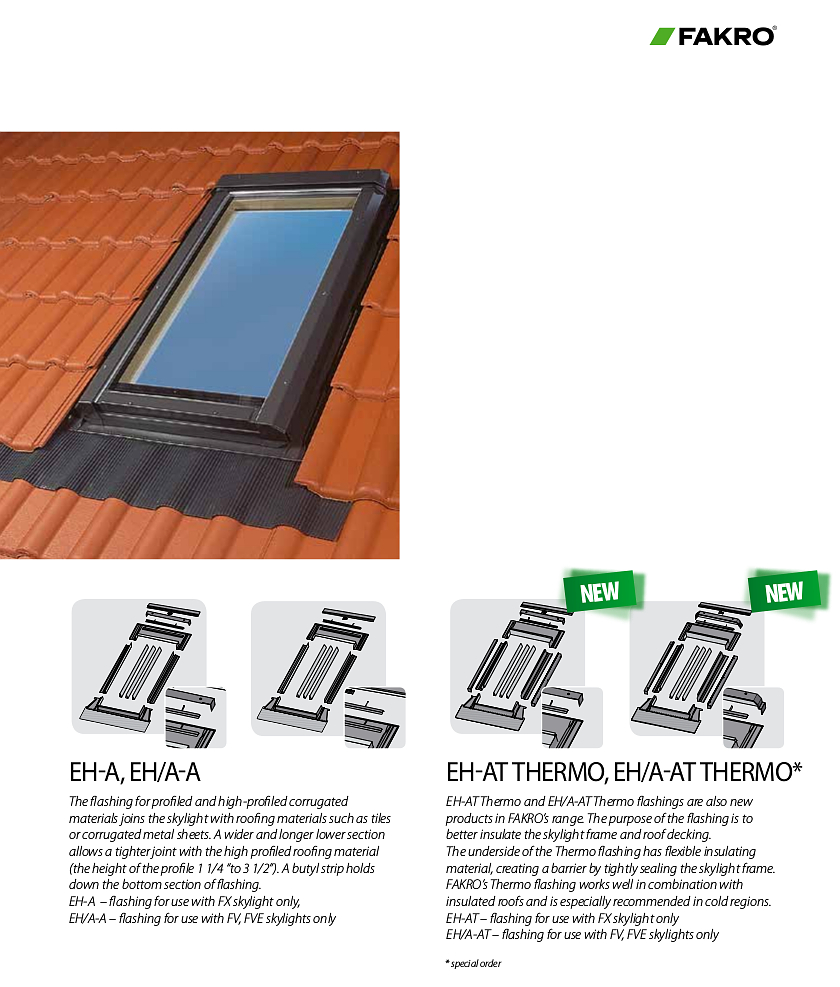

Flashing for Fakro Skylights- using profiled and high-profiled corrugated roofing materials



Flashings for Fakro glass skylights - For profiled and high-profiled corrugated roofing materials
Flashings for Fakro glass skylights - For profiled and high-profiled corrugated roofing materials



Characteristics of Fakro Glass Skylights

-Fakro Glass Skylights are made of prime quality materials and components.

- They are manufactured with the use of the latest technologies and modern assembly lines.

-Protection Against Effects Of Outside Condensation: Thanks to a very thick wooden frame-all metal hardware is eliminated. Metal causes condensation to form. In addition, an ice-water shield is added during the installation process to protect the wooden frame. Thus condensation will only appear on the ice-water shield and not the outside frame surface.

-Protection Against Effects Of Inside Condensation (No dripping water on frame and drywall)
**Leak proof skylight: When installed according instructions, with the included flashing kit and ice-water shield membrane, FAKRO warrants a 10-YEAR LEAK-PROOF installation.
-High thermal properties and materials - energy efficient
-Glass skylights transmit light not heat (in summer)
-Factory Finished - No Extra Work Required
-Easy and simple installation
-Long lasting performance
-Accessories available

*Pls. Contact us for list of available accessories.

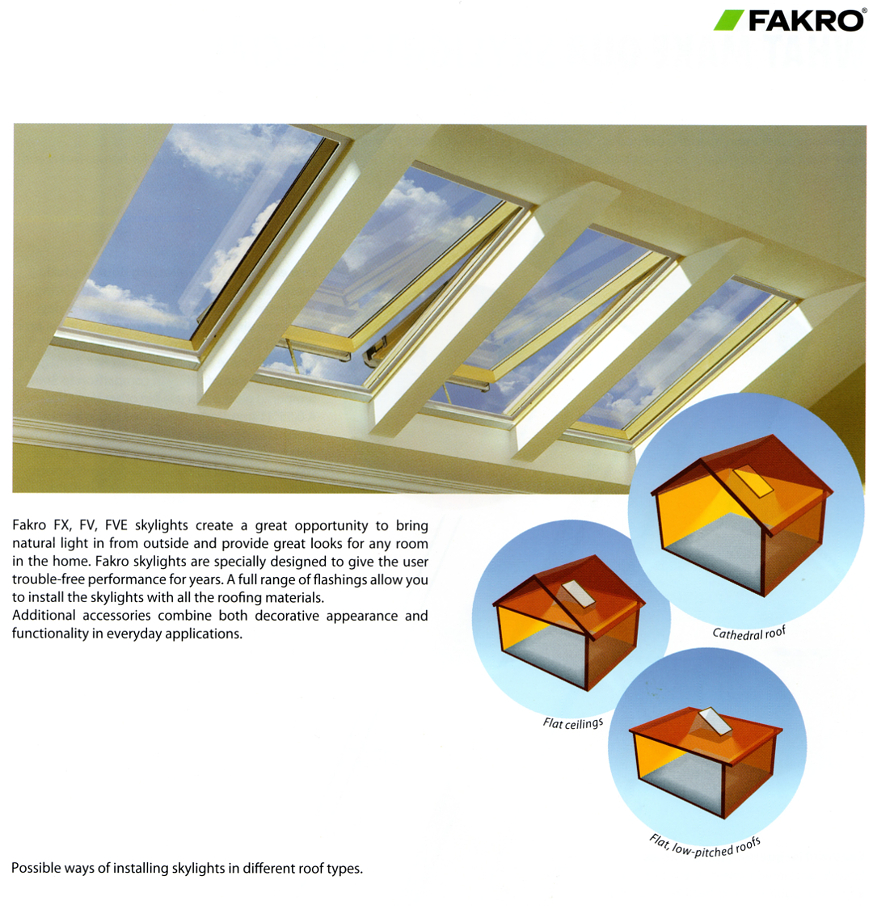

Fakro Glass Skylights - install on various roof types



Certifications:



Standard FAKRO skylights (FX, FV, FVE) comply with the applicable requirements of the:


International Building Code (IBC)
International Residential Code (IRC)
International Energy Conservation Code (IECC)


As a confirmation of the compliance with the above codes, FAKRO products has been awarded with the IAPMO UES # 0268.  IAPMO UES logo


All glass skylights are monitored at every stage of production. High quality control standards and a simple installation process and backed by a FAKRO LIFETIME warranty.**
